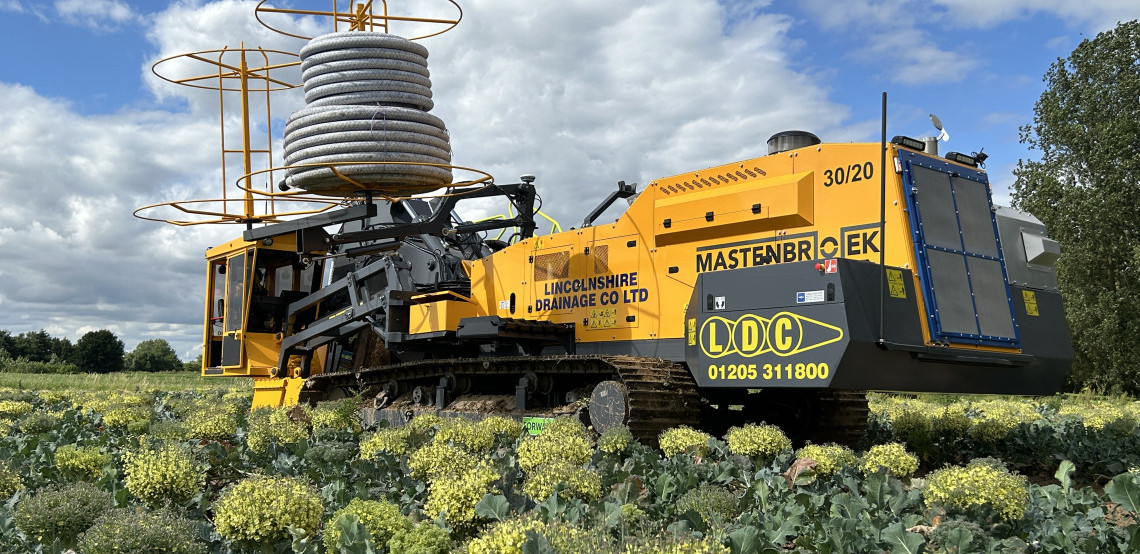

30/20

The 30/20 is fitted with two dual-speed motors to maximise torque across the digging chain speed range. The result is optimum digging power in varied and heavy soils, enabling on grade sub-surface drainage for agricultural laterals and collectors, and cross country trenching.

Machine features

Trench method - Digging chain with stepless adjustable speed
Grade control - Trimble precision laser or GPS, with manual override
Trench depth range - 0.3m - 2.2m - (optional 3.0m)
Trench width range - 125mm - 450mm
Pivoting trenching unit - 5° from centre to both sides
Digging chain drive - Dual speed hydrostatic low speed high torque motors
Spoil discharge - Auger to both sides
Pipe box - Pivoting with hydraulic lift, and depth adjust
Backfill hopper - Hydraulic height adjustable
Pipe handling - Manual or hydraulic pipe reels
Power unit - Volvo EU Stage 4 285kw (388hp) other stage compliant engines available
Undercarriage - Heavy duty oscillating D4 - (optional side tilt)
Track pad - 600mm Triple grouser
Track drive - Independent hydrostatic, high & low speed drive 0 - 4400m/hr
Operators position - Elevating cabin with heating. ROPS certified
Transport dimensions - Length 12.85m - Width 2.85m - Height 3.25m (Approx)
Weigth - 23.2 tonne (Approx)
